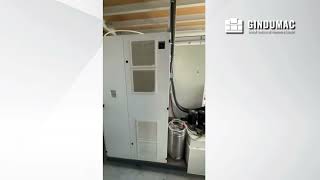

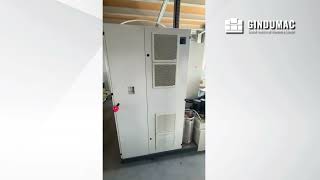

Mesin electric discharge Charmilles Robofil 440 CC

This 3-axis CHARMILLES Robofil 440 CC was manufactured in 2007 and features a robust design with a total system weight of 4450 kg when filled with dielectric. It can handle workpieces up to 1500 kg, with maximum dimensions of 1200 x 700 x 400 mm. Ideal for precision wire EDM processes, this machine offers a comprehensive control system with a TFT 12" screen. If you are looking to get high-quality EDM capabilities consider the CHARMILLES Robofil 440 CC machine we have for sale. Contact us for more information.
Machine Benefits
Technical Machine Benefits
Total dielectric volume: 1200 l
Min. /max. Dielectric thickness: 0/435 mm
Standard wire guides: 0. 25 mm
Three-phase input voltage: 400 v
Mains frequency (2 versions): 50 or 60 hz
Power factor: 0. 8
Total installed power: 10 kva
Permissible fluctuations: ±10%
Permissible micro-interruptions: 4 ms
Compressed air supply: 6-7 bar
Extra Information
Controller
Numerical control TFT 12"/
Dimensions of the entire system (WxDxH) mm 2600x2810x2240/
Total weight of the system without dielectric kg 3300/
Total weight of the system with dielectric kg 4450/
Working area/
Max. workpiece dimensions mm 1200x700x400
Max. workpiece weight kg 1500/
Min./max. Dielectric thickness mm 0/200/
Compressed air supply/
Pressure bar 6…7 bar/
Minimum flow rate l/min 150/
Axes/
Travel X, Y, Z mm 550x350x400/
Travel U, V mm 550/350/
Taper angle / height °/mm ±30/400/
Measurement resolution X, Y, U, V, Z µm 0.05/
Movement speed of the axes mm/min 0…3000/
Collision protection for the axes X, Y, U, V, Z/
Dielectric/
Type Deionized water/
Total dielectric volume L 1200/
Filter cartridges 4/
Deionization bottles 1/
Total deionization resin volume L 20/
Electrode / Wire/
Standard wire guides mm Φ 0.25/
Programmable wire tensile force daN 0.3…2.5/
Programmable wire unwinding speed m/min 0.5…15/
Automatic wire threading mm Φ 0.1/0.2/0.25/0.3/
Automatic wire rethreading mm Φ 0.2/0.25/0.3/
Minimum pilot hole diameter for automatic threading/
mm Φ 0.8/
Maximum height for automatic threading with 0.25 mm wire/mm 220/
Permissible wire spool weights and types kg according to DIN standards: 1.6 (K100) – 8(K160)/
according to JIS standards: 3(P3) – 5(P5)/

Electrical cabinet/
Three-phase input voltage V 400/
Mains frequency (2 versions) Hz 50 or 60/
Permissible fluctuations ±10%/
Total installed power: 10 kVA/
Permissible micro-interruptions in ms: 13.5 A/
Power factor: 0.8/
Display: 12" TFT/
Available standard languages: French, English, German,Italian, Spanish/
User memory capacity: 6 GB/
Operating system: Windows XP SP2/
CD-ROM/
Ethernet port, USB/
Parallel port/
Remote control/
Alphanumeric keyboard: PC/
Permissible ambient conditions/
Temperature for optimal accuracy: 20±1°C/
Temperature for optimal equipment: 15…30°C/
Permissible relative humidity: 40…80%/
Max. noise emission of the machine: 76 dB(A)/
Thermal stabilization time: 3 h/
Electrical equipment protection rating: IP 43
application type: EDM
Location: Germany
machine type: Wire EDM Machine
Machine Depth: 2600 mm
Number of Axes: 3
