Truk pengangkat tangga Isuzu 36 meters Mobile ladder truck baru

We Production 30meter to 55meters mobile ladder truck

Chengli Group is the largest special-purpose vehicle manufacturer in China. We can customize ISUZU, FOTON, HOWO, SINO, JAC, SHACMAN, DONGFENG, JMC and other brand trucks according to your needs.

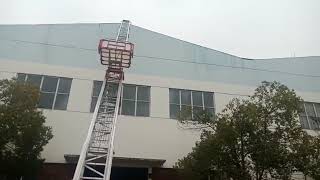

ISUZU 36 meters ladder truck

Size parameters long
mm 5995
  Width
mm 2000
  high
mm 3000




Quality parameters Total mass kg 7300
  Curb Weight kg 4365
  Number of passengers (including driver) people 3




Main performance parameters Rated load of working platform kg 400
  Maximum operating height
m 36

Longitudinal span
mm
4200







Configuration parameters Chassis
- ISUZU
  Fuel Type
- diesel fuel
  Engine power ml/kW 2499/95
  Emission Standards
- Euro VI












Driving parameters Number of axes indivual 2
  Number of tires indivual 6+1
  Tire specifications
-
  7.00R16LT
  Maximum driving speed km/h 100


Outriggers Type: Front and rear X-shaped, individually adjustable. Longitudinal span 4200
  Number of outriggers: 4, eight cylinders.
  Control: adjustable individually or in conjunction



Main Operation Operating position: rotating platform  , under the cargo box or remote control
  Control element: electromagnetic four-way proportional valve with overload protection  . M+S motor
  Control mode: oil-electric proportional control system, stepless speed regulation

Girder
160*65 Large section profile

Vehicle plate
BS700 High Strength Plate

Hoardings  , walkways
Hard aluminum alloy and five series high-strength patterned aluminum plate
Height of cargo box from ground 45cm

Ladder structure High-strength hard aluminum alloy oxide coating, eight sections synchronously retractable.

Trolley structure
Secondary linkage /direct pull type (optional)

Rotating device
Bidirectional 180° rotation, overload protection device.
Steel Cable Imported quality custom made high strength steel cable  . Small expansion ratio and high strength.
Outrigger structure Internal space reinforced box structure
Cargo Box The rear door can be opened and closed manually or by remote control.
Power Output Chassis engine /oil-electric integration (optional)




remote control
IP68 grade, waterproof, drop-proof, LCD display, full vehicle remote control, each action has full speed and slow speed operation stability, ladder and cargo box remote control are combined into one.

Weighing
The cargo box has a weighing function to prevent danger from overloading.


Top
Prevent the ladder arm from being damaged by erroneous  operation .


360 degree continuous rotation

This prevents customers from forgetting the direction of the ladder when they are busy and causing it to rotate  more than 360 degrees, damaging oil pipes and wires.



Up and down positioning

The up and down positioning operation is simple. If you are not satisfied with any of the positioning positions, you only  need to adjust the unsatisfactory one. Positioning can also be operated on the remote control.


positioning accuracy

The cargo box positioning accuracy does not exceed ±2CM.

 Interlocking device for boarding and exiting

Used for interlocking when getting on and off the vehicle  to prevent danger caused by misoperation

Vehicle  level tester

Can detect the tilt status of the vehicle in both the lateral and longitudinal directions

Ladder limit  alarm device

Automatic alarm prompt when the ladder reaches the limit

Emergency brake  device

Used to force stop the platform operation

One-touch ignition and  shutdown

The engine can be started  and stopped at the operating console.

Night safety  lighting

There are 2 engineering lights installed on the operating table

remote control
Imported from Germany Ultra-long remote control distance (120-150 meters) cargo box and vehicle remote control integrated operation

Ladder arm control valve
Import Customization
Four-way overload protection device

Dump bucket
patent Low height, large turning angle, convenient automatic  operation

alarm system
patent
Voice and indicator light alarm
X-Legs patent Large span, safe and reliable
GPS Import Customization Low failure rate, high precision and long life

Rotary system
patent Automatically identify the ladder arm rotation angle to prevent  excessive rotation from damaging the oil pipe and circuit
Automatic operation system Imported from Germany Microcomputer control, automatic acceleration and deceleration,  protection of steel cables and ladder arms

hoist
Import Customization
Long life and low failure rate

Ladder boom
imported from Korea
Aviation aluminum profiles

Wire Rope
Imported quality customization Export-specific wire rope, low  elasticity , high strength

Computer controller
Import Customization Exclusively customized control system, code-level adjustment


motor

Import Customization Imported and customized, long life  and low failure rate

Brakes
Import Customization Imported and customized, long life  and low failure rate
